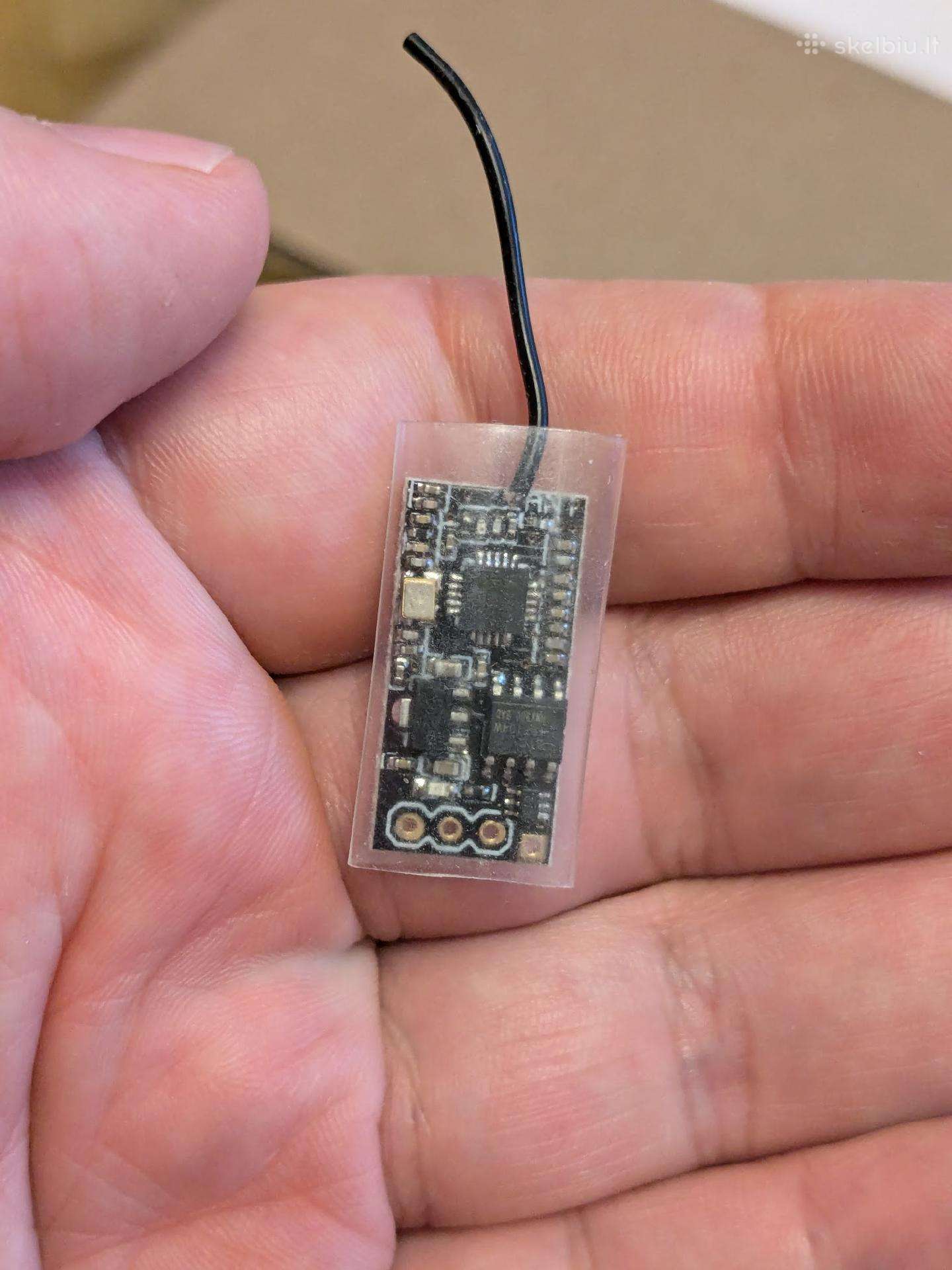

6Ch Flysky Compatible Mini Receiver for i6 i6x AFHDS 2A PPM Output
Binding procedure:
1 - Solder the two pins: Binding and GND
2 - Power to the receiver with +5v battery or connected to a flight controller with +5v output, the blue LED should start to Flashing , indicating it is ready to bind
3 - Turn on the transmitter and enter binding mode ,waiting for a second, the blue LED light is solid, indicating bind successfully
LED Status - Binding(Flashing), Success(Solid), Normal Mode(Flashing), Signal Lost(Off)

Features:
Compatibility: FS-I6,TH9X GT2B,GT3,GT3B,GT3C etc. / ER9X,OPENTX with Flysky tuner etc. / Walkera D7E with A7105 Module and etc.

Specifications:
Item Name: Mini AFHDS Reciever
Channels: 6CH PPM output
Frequency Range: 2.4GHz
Power: 5V
Work mode: AFHDS
Transmit distance: About 100m
Without Failsafe
Size: 11mm*23mm
Weight: 0.6g
