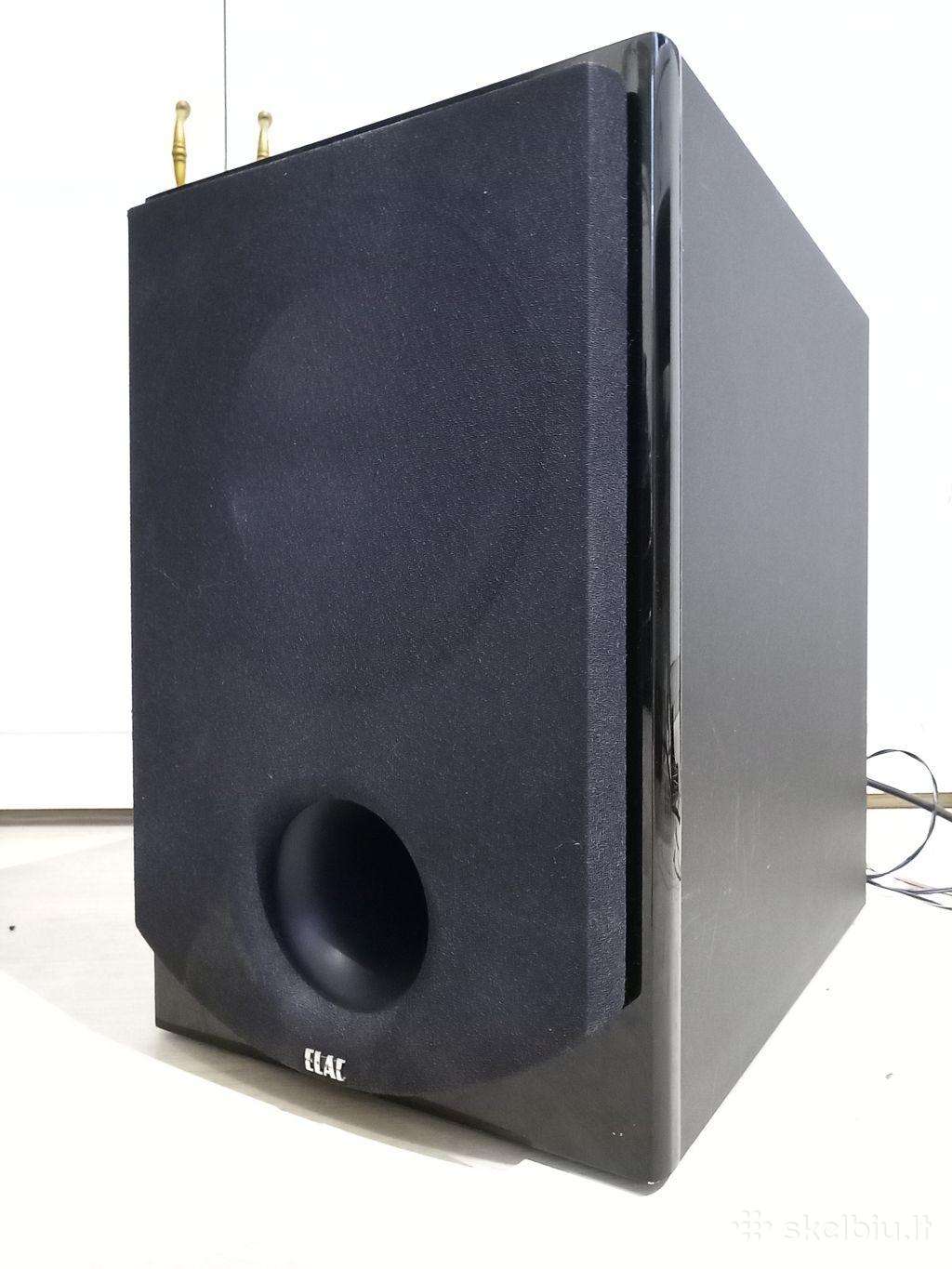

Subwoofer ELAC solidaus gamintojo iš vokietijos. Vidus netaisytas.
Direct firing system. Puikus, galingas, gilus, užpildantis, žemo gažnio pateikimas.
Priekį uždengia tvarkingas tinklelis.
Įėjimai 2 tipų. Tinka tiek naujiems, tiek senesniems stiprintuvams.
Geras varijantas namų kino sistemai arba papildyti lentynines garso kolonėles
tech info:
https://www.pult.ru/upload/iblock/9f6/9f6737987e62e912704b67c622fa05f0.pdf
Galiu pristatyti į Vilnių

ELAC SUB 111.2 ESP: Adaptability in a cube
The active subwoofer SUB 111.2 ESP produces solid bass sound for home
cinema and hi-fi listening enjoyment. Its universal terminal design with
parallel connecting options for 3 speakers and a LFE connection ensure an
almost independent bass management. The ability to continuously adjust
the upper cutoff frequency ensures maximum flexibility in terms of the
frequency response. The SUB 111.2 ESP perfectly combines great sound
and modern trends that everyone can afford!
A special feature is ESP:
ESP® is a frequency and power dependent
electronic stabilisation programme for controlled bass
performance even in extreme situations. The
electronic components ensure that even at maximum
power no distortions can be detected. In comparison to conventional active
subwoofers, it is almost impossible to overdrive ELAC subwoofers!
Operation / Connections
Parallel connecting options for 3
loudspeakers (e.g. left, right, centre) and LFE connection of the surround receiver at the same
time
continuous adjustability of upper cutoff frequency for maximum flexibility
positive addition of subwoofer and satellites throughout the crossover area is supported by a
self-resetting fuse
self-resetting fuse 0 / 180
15 min auto power off delay
mains connector: IEC power inlet
RCA connector LFE input
high quality gold-plated binding posts for speaker cable inputs and satellite outputs L/R/C
Drive Units
11 x 200 mm aluminium sandwich woofer at the front
bass port in front
Electronical Features
discrete class A/B amplifier circuit driven by 4th order filter
with ESP for perfect adaptation to drive units, amplifier, and cabinet
standby mode (indicated through red LED on the back panel)
Finishes: silver, titan, cherry, black
Specifications: ELAC SUB 111.2 ESP
Dimensions H x W x D 400 x 257 x 380 mm
Gross Volume 40 l
Weight approx. 13 kg
Type 1-way active, bass reflex
Woofer 1 x 200 mm AS cone
Amplifier Power 100 W (pulse)
80 W (sine)
Input impedance Line: 35 kOhm
LS: 220 Ohm floating
Power consumption max. 2 W, standby
Mains connection 220.240 V/50.60 Hz
110.120 V/50.60 Hz
Mains fuse 1 A Tat 220.240 V/50.60 Hz
2 A T at 110.120 V/50.60 V
Outputs LS: filtered with 220 μF
Input sensitivity Line: 1 x 200 mV (RCA)
Loudspeaker: 3 x 2.5 V
Upper cutoff frequency, adjustable 40.180 Hz
