Industrial fanless PC Nexcom NISE3600P2E

Solidus aliumininis korpusas-radiatorius, konstrukcijoje nenaudojamas nei vienas ventiliatorius,

Intel Core i3-3120ME
4GB RAM (2x2GB modules)

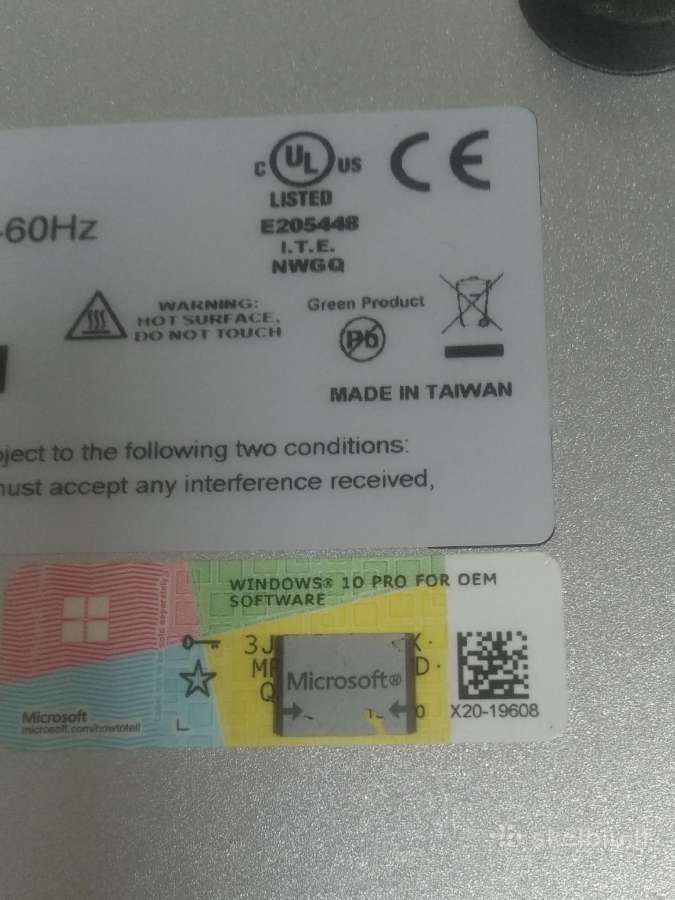

yra windows 10 pro licenzijos lipdukas

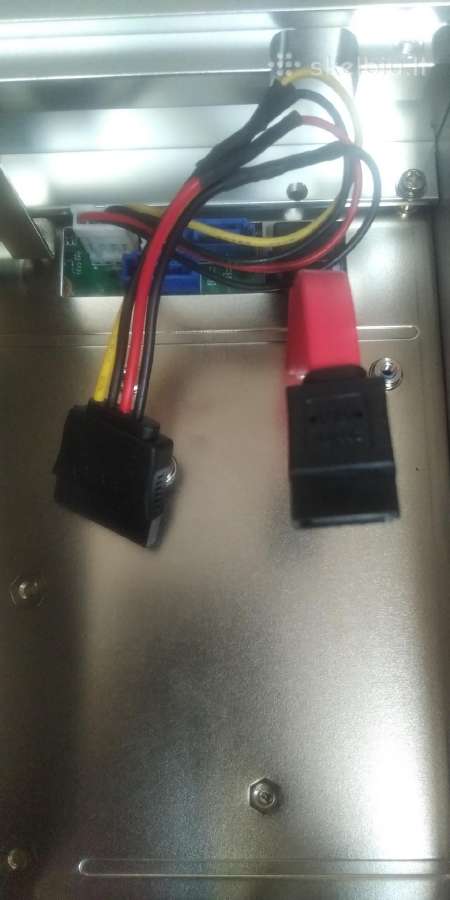

nera HDD/SDD bet kabeliai SATA + power yra

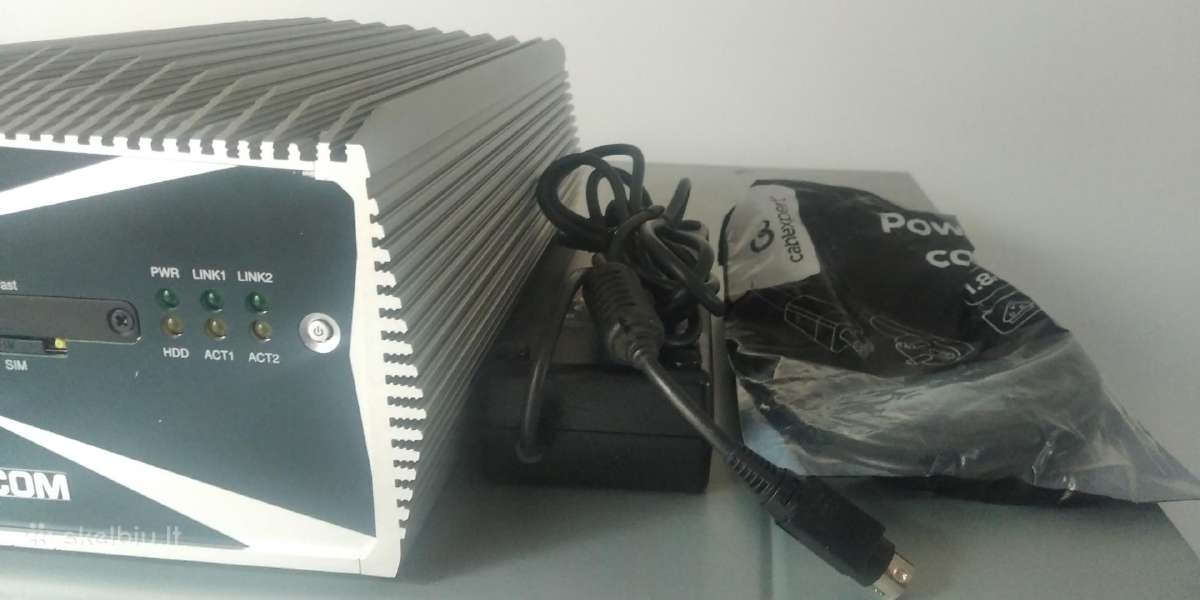

Maitinimo šaltinis pridedamas.

Tipiškai valgo apie 25-35W elektros

Svoris - 8 kg

Siunciu

Aprasymas Gamintojo:

Datasheet PDF
https://www.ipc-systemes.com/documents/NISE3600P2E.pdf


Specifications:

CPU Support
Support 3rd generation Intel® Core i5/i3 rPGA Socket Type Processor
-Core i5-3610ME, Dual Core, 2.7GHz, 3M Cache
-Core i3-3120ME, Dual Core, 2.4GHz, 3M Cache
-Support Three Independent Display with above processors

Support 2nd generation Intel® Core i5/i3 rPGA Socket Type Processor
-Core i5-2510E, Dual Core, 2.5GHz, 3M Cache
-Celeron® B810, Dual Core, 1.6GHz, 2M Cache - Support Dual Independent Display with above processors

Main Memory
2x DDR3 SO-DIMM socket, supports up to 8GB DDR3/ DDR3L 1333/ 1600 SDRAM, with un-buffered and non-ECC Display Option

Three Independent Display (only support on 3rd Generation Processor)
- Two Display Port and 1x VGA - Two Display Port and 1x DVI-D Dual Independent Display - VGA and DVI-D - Display Port and VGA - Display Port and DVI-D - Display Port and Display Port


I/O Interface-Front
ATX power on/ off switch
HDD Access/ Power status LEDs
2x USB3.0 ports (Blue Color)
2x Display Port (Can be converted to DVI-D or HDMI via cables)
2x Antenna holes
1x external CFast (optional)
1x SIM card socket

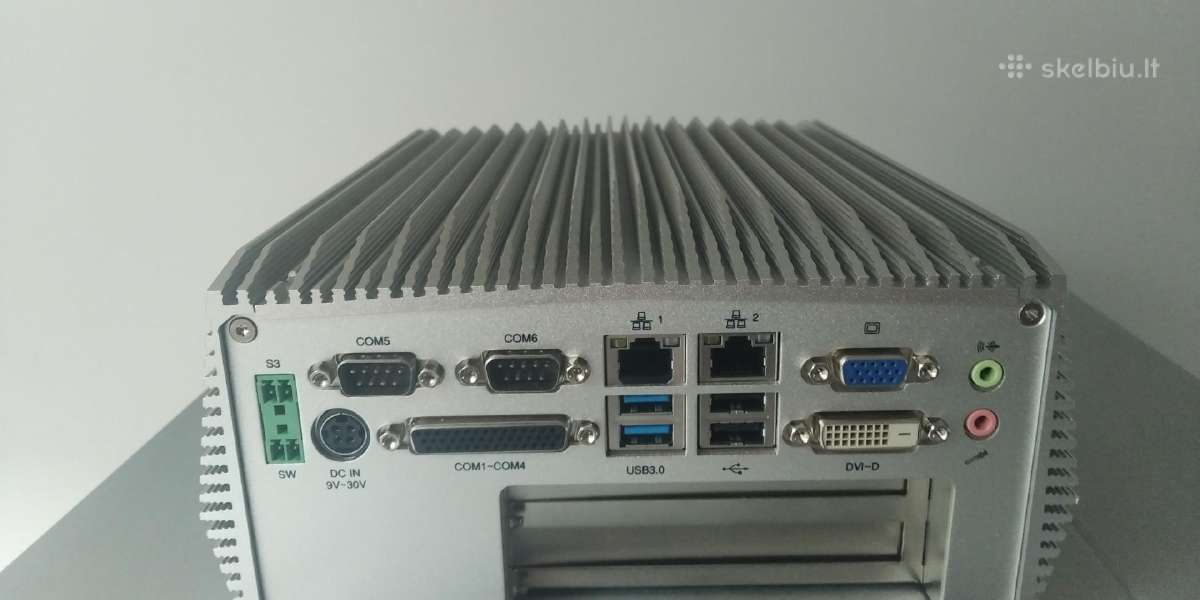

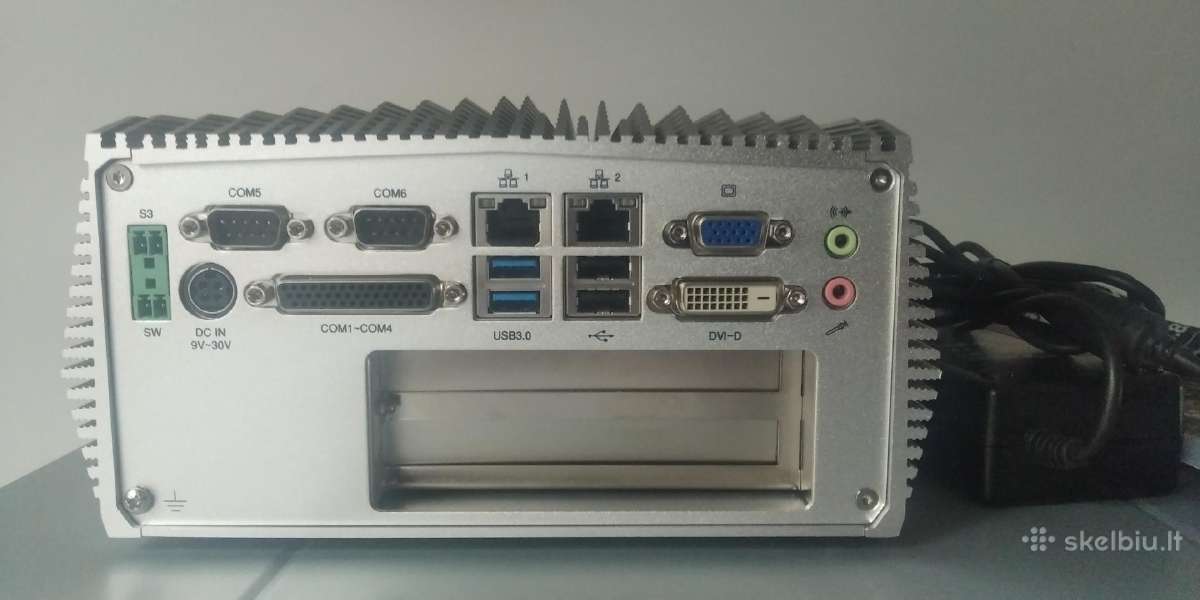

I/O Interface-Rear
2x DB9 for COM5 & COM6 (RS232)
1x DB44 Serial Port, 4x COM port - COM1/COM3/COM4: RS232 - COM2: RS232/422/485
2x Intel® GbE LAN ports (Intel 82574L and 82579LM)
2x USB2.0 ports
2x USB3.0 ports (Blue Color)
1 x DB15 VGA port
1 x DVI-D port
1 x Line-out and 1x Mic-in
2-pin Remote Power on/ off switch
9~30V DC input

Storage Device
1x CFast socket
2x 2.5 SATA HDD or 2x SATA DOM
SATA DOM: support 90 degree horizontal type only

Expansion Slot
One PCIe x4 & One PCI expansion slot
- Add-on card length: 169mm max.
- Power consumption: 10W/slot max.
1x miniPCIe socket (support optional WiFi or 3.5G module)

Power Requirements ATX power mode
On-board DC to DC power support from 9V to 30V DC

Dimensions
215mm (W) x 272mm (D) x 114mm (H) without wall mount bracket

Construction
Aluminum Chassis with fanless design

Environment
Operating temperature:
Ambient with air flow: -5C ~ 55C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage temperature: -20C ~ 80
Relative humidity: 95% at 40 degree C Shock protection: 20G, half sine, 11ms, IEC60068-2-27
Vibration protection
Random: 0.5Grms @5~500 Hz according to IEC68-2-64
Sinusoidal: 0.5Grms @5~500 Hz according to IEC68-2-64
