Planer & Thicknesser MSP 415

https://www.rojek.eu/combined-machines/msp415

+ Precision and Quality: Ensures high precision and superior wood processing quality.



+ Robust and Durable: Designed for longevity and resilience, suitable for intensive industrial use.


+ Ease of Use: Simple operation and low maintenance needs enhance productivity.

Planer & Thicknesser
MSP 415

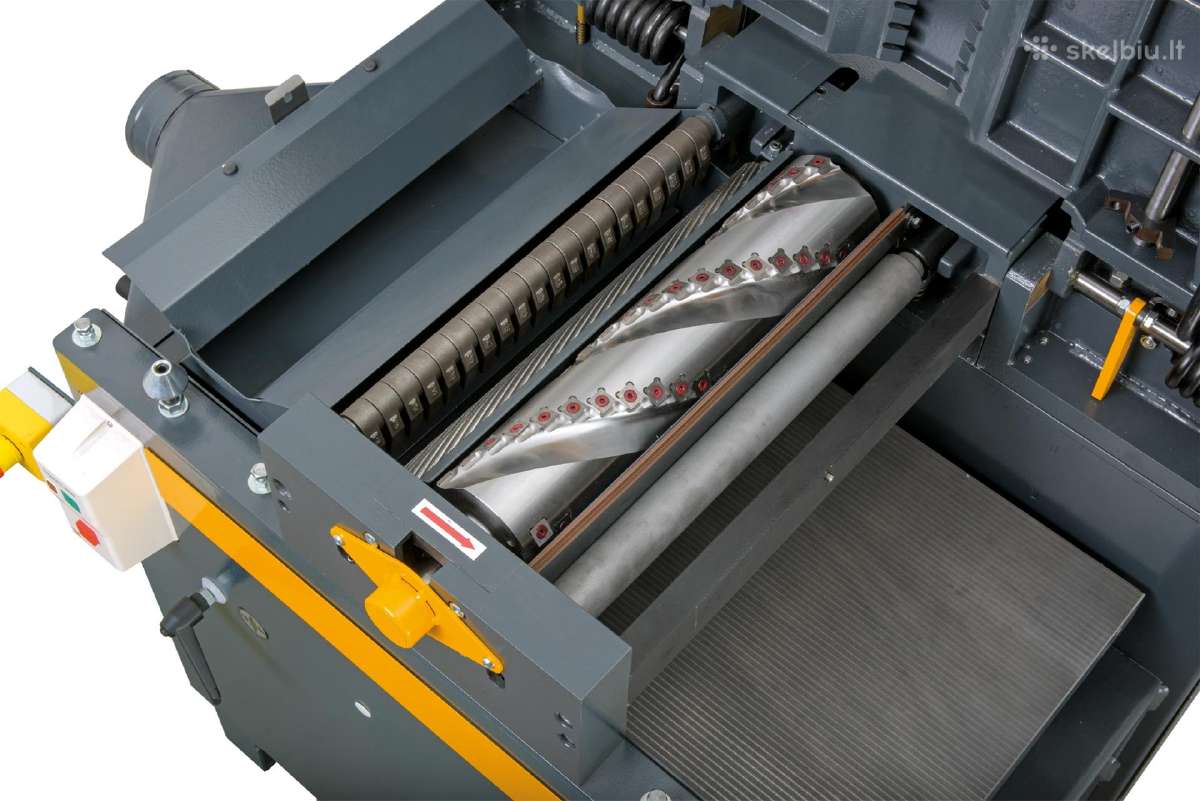

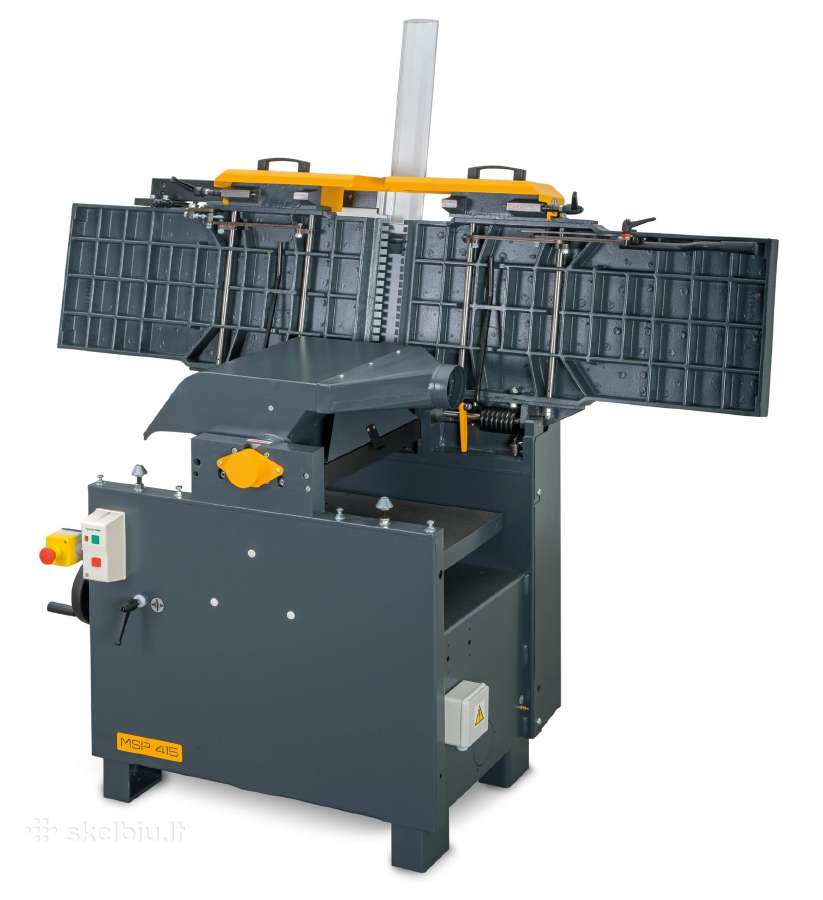

The combined planing and thicknessing machine MSP 415 features comfortable workpiece guidance on solid cast iron tables with high robustness and precision. A significant design change compared to the previous model is especially the comfortable parallel tilting of the tables on massive hinges. Two torque springs facilitate the manipulation of the tables. The machine is equipped with a spiral cutter system MBM. Optional accessory is an additional mortising device VDA 315L.


Technical data
Techninės detalės paimtos iš gamintojo svetainės (reiks dar pasitikslinti ar nebuvo pakeitimų)

Planer table dimensions 1870 x 420 mm
Thicknesser table dimensions 750 x 408 mm
Cutterblock diameter 95 mm
Feeding rollers diameter 40 mm
Number of cutters 66

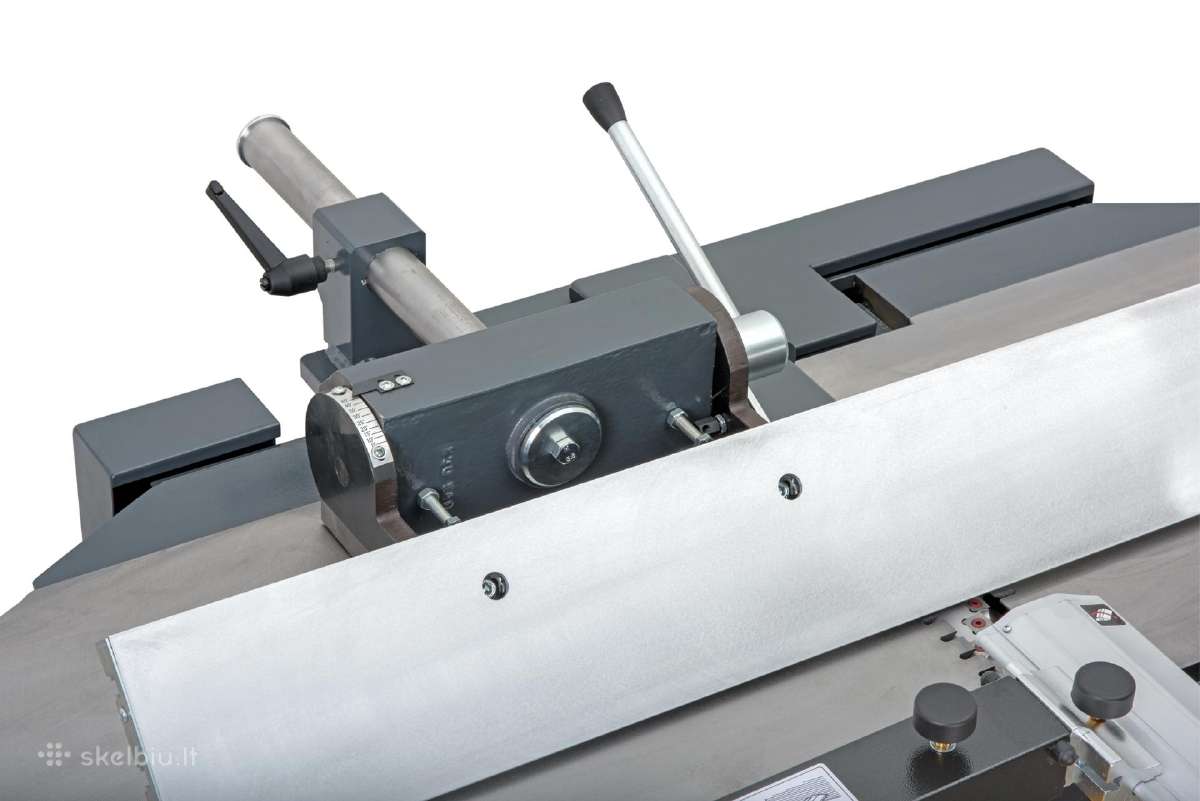

Tilting fence angle 0 - 45
Cutterblock speed 4200 rpm
Max. planing width 410 mm
Max. thicknessing width 400 mm
Max. thicknessing height 230 mm
Max. planing depth 4 mm
Max. thicknessing depth 5 mm
Thicknessing feeding speed 8 m/min
Main motor power 4.4 kW / S6 - 3f
Dust extraction diameter 100 mm
Net weight 480 kg
